Convex segments 5° 1,5 D
Price on request or after logging in
plus shipping charges
- radius 1,5 x d
- superior roundness
- Schmelzer flanged edge
- calibrated inside
- pulled inside the tool
- hot-dip galvanized (vz.) or powder-coated (pb.)

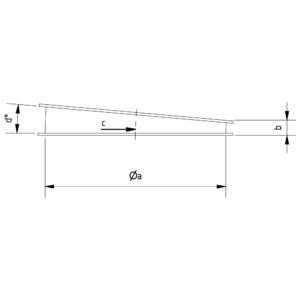

| Type | Articlenumber | Old Articlenumber | a | b | c | d | kg |
|---|---|---|---|---|---|---|---|
| DN 150 2mm vz. | 1001145 | 4010015015753 | 149 mm | 12 mm | 223,5 mm | 5° | 0,2 |
| DN 200 2mm vz. | 1001202 | 4010015015823 | 199 mm | 17 mm | 298,5 mm | 5° | 0,4 |
| DN 250 2mm vz. | 1001206 | 4010015015827 | 249 mm | 21 mm | 373,5 mm | 5° | 0,5 |
| DN 200 3mm vz. | 1001149 | 4010015015758 | 199 mm | 17 mm | 298,5 mm | 5° | 0,6 |
| DN 250 3mm vz. | 1001153 | 4010015015763 | 249 mm | 21 mm | 373,5 mm | 5° | 0,8 |
| DN 300 3mm vz. | 1001157 | 4010015015778 | 299 mm | 29 mm | 448,5 mm | 5° | 1,2 |
| DN 200 3mm pb. | 1001174 | 4010015015795 | 199 mm | 17 mm | 298,5 mm | 5° | 0,6 |
| DN 250 3mm pb. | 1001175 | 4010015015796 | 249 mm | 21 mm | 373,5 mm | 5° | 0,8 |
