Convex segments 5°
Price on request or after logging in
plus shipping charges; plus VAT
- pulled inside the tool
- hot-dip galvanized (vz.) or powder-coated (pb.)

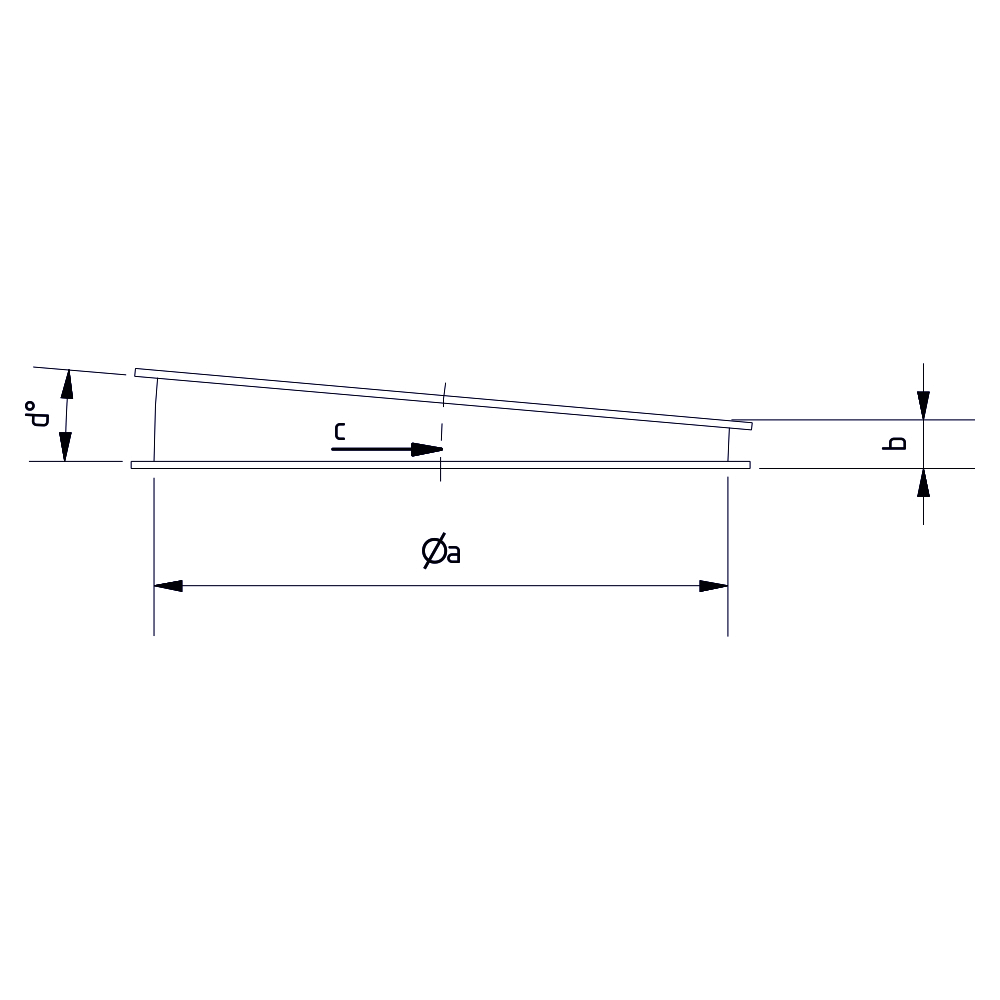

| Type | Articlenumber | Old Articlenumber | a | b | c | d | kg |
|---|---|---|---|---|---|---|---|
| DN 150 2mm vz. | 1001124 | 4010015015724 | 149 mm | 40 mm | 600 mm | 5° | 0,5 |
| DN 200 2mm vz. | 1001128 | 4010015015729 | 199 mm | 50 mm | 690 mm | 5° | 0,8 |
| DN 250 2mm vz. | 1001132 | 4010015015734 | 249 mm | 40 mm | 635 mm | 5° | 0,8 |
| DN 300 2mm vz. | 1001136 | 4010015015741 | 299 mm | 40 mm | 625 mm | 5° | 1,0 |
| DN 200 3mm vz. | 1001114 | 4010015015713 | 199 mm | 50 mm | 690 mm | 5° | 1,0 |
| DN 250 3mm vz. | 1001110 | 4010015015708 | 249 mm | 40 mm | 635 mm | 5° | 1,4 |
| DN 300 3mm vz. | 1001140 | 4010015015746 | 299 mm | 40 mm | 625 mm | 5° | 1,5 |
You can find instruction manuals under the following link: Instruction manuals
