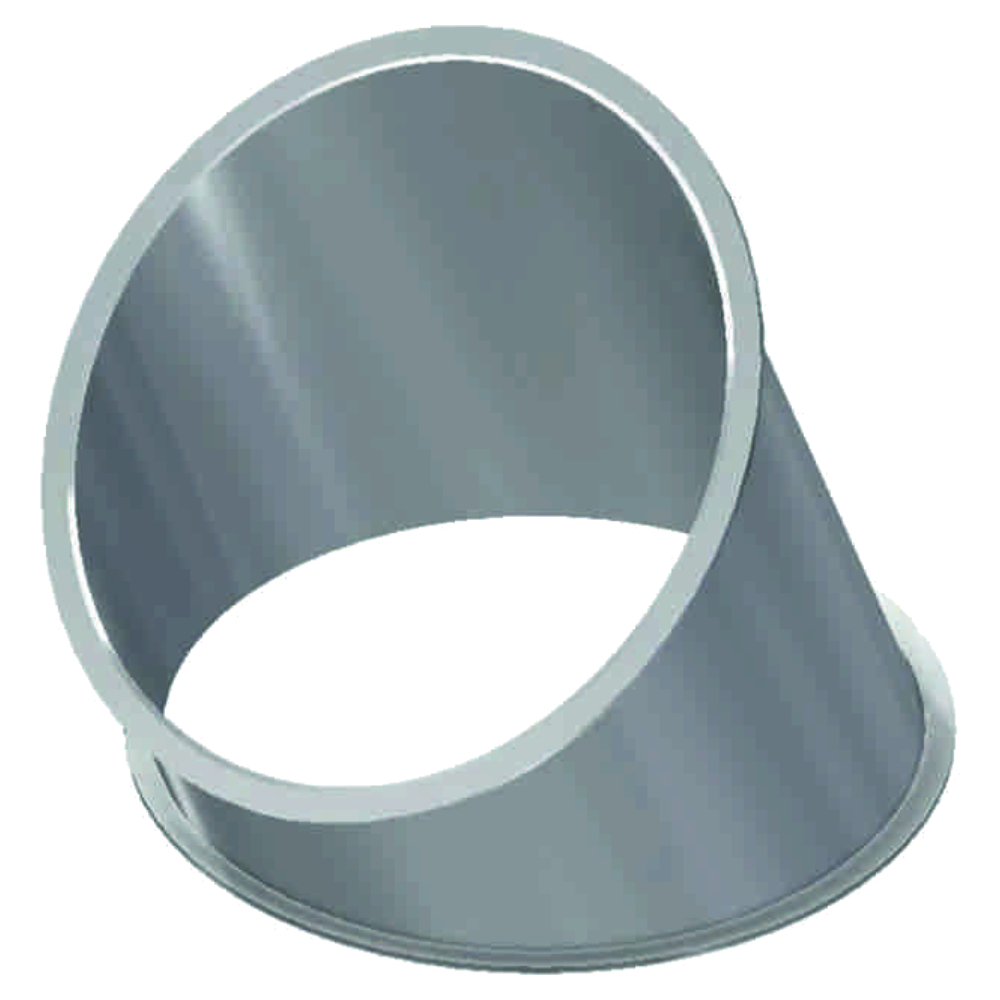

Straight segments 45°

Price on request or after logging in

plus shipping charges

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • hot-dip galvanized (vz.) or powder-coated (pb.)
  • one-part or two-part (*)

SKU: N/A Category:
TypeArticlenumberOld Articlenumberabckg
DN 150 1,5mm vz. 1001089 4010015015668 149 mm 33 mm 45° 0,6
DN 150 2mm vz. 1001093 4010015015673 149 mm 33 mm 45° 0,8
DN 175 2mm vz. 1001164 4010015015785 174 mm 33 mm 45° 1,3
DN 200 2mm vz. 1001097 4010015015683 199 mm 33 mm 45° 1,4
DN 250 2mm vz. 1001105 4010015015693 249 mm 33 mm 45° 1,8
DN 300 2mm vz. 1001144 4010015015751 299 mm 33 mm 45° 2,4
350 2mm vz. 1000843 (*) 4010015015844 349 mm 33 mm 45° 7,7
DN 400 2mm vz. 1000844 (*) 4010015015845 399 mm 33 mm 45° 10,1
DN 200 3mm vz. 1001101 4010015015688 199 mm 33 mm 45° 1,9
DN 250 3mm vz. 1001109 4010015015698 249 mm 33 mm 45° 2,7
DN 300 3mm vz. 1001120 4010015015720 299 mm 33 mm 45° 3,6
DN 350 3mm vz. 1001171 (*) 4010015015792 349 mm 33 mm 45° 12,0
DN 400 3mm vz. 1001172 (*) 4010015015793 399 mm 33 mm 45° 15,1
DN 200 3mm pb. 1001197 4010015015818 199 mm 33 mm 45° 1,9
DN 250 3mm pb. 1001198 4010015015819 249 mm 33 mm 45° 2,7
DN 300 3mm pb. 1001199 4010015015820 299 mm 33 mm 45° 3,6
DN 350 3mm pb. 1001200 (*) 4010015015821 349 mm 33 mm 45° 12,0
DN 400 3mm pb. 1001201 (*) 4010015015822 399 mm 33 mm 45° 15,1

You can find instruction manuals under the following link: Instruction manuals

File
4010015015668-Ø150x1,5 45° (170.48 KB)
4010015015673-Ø150x2 45° (46.83 KB)
4010015015683-Ø200x2 45° (54.87 KB)
4010015015688-Ø200x3 45° (48.18 KB)
4010015015693-Ø250x2 45° (171.74 KB)
4010015015698-Ø250x3 45° (175.52 KB)
4010015015720-Ø300x3 45° (184.82 KB)
4010015015751-Ø300x2 45° (185.48 KB)
4010015015785-Ø175x2 45° (13.7 KB)
