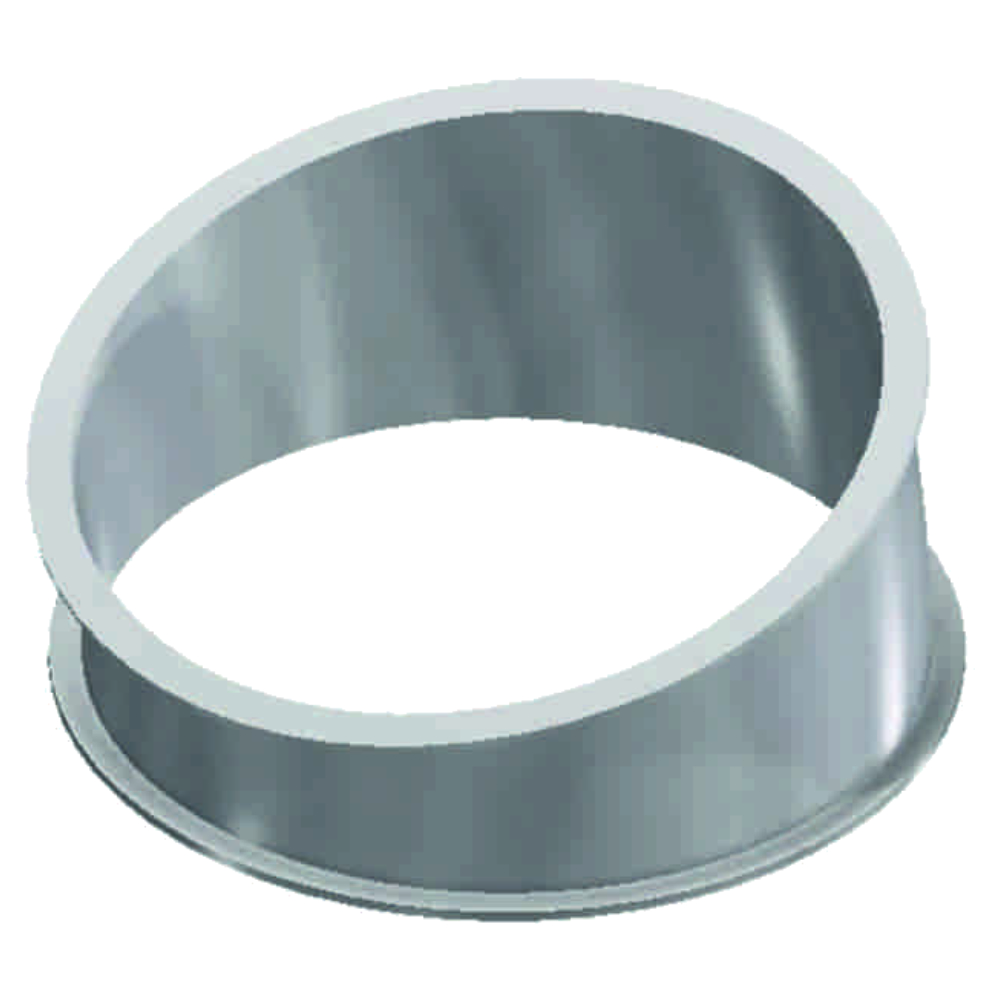

Convex segments 15°
Convex segments 15° - Image 2
Convex segments 15° - Image 3

Convex segments 15°

Price on request or after logging in

plus shipping charges; plus VAT

  • pulled inside the tool
  • hot-dip galvanized (vz.) or powder-coated (pb.)

SKU: N/A Category:

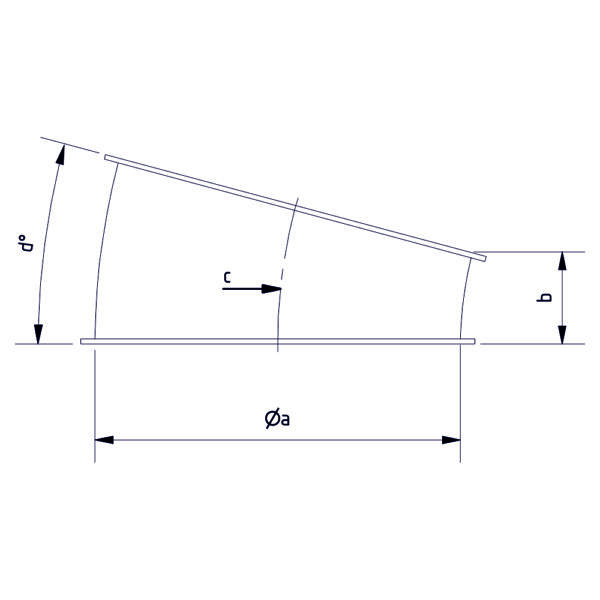

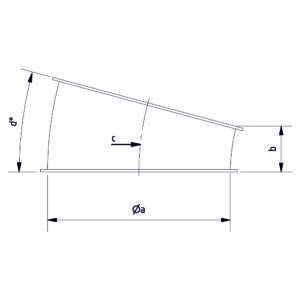

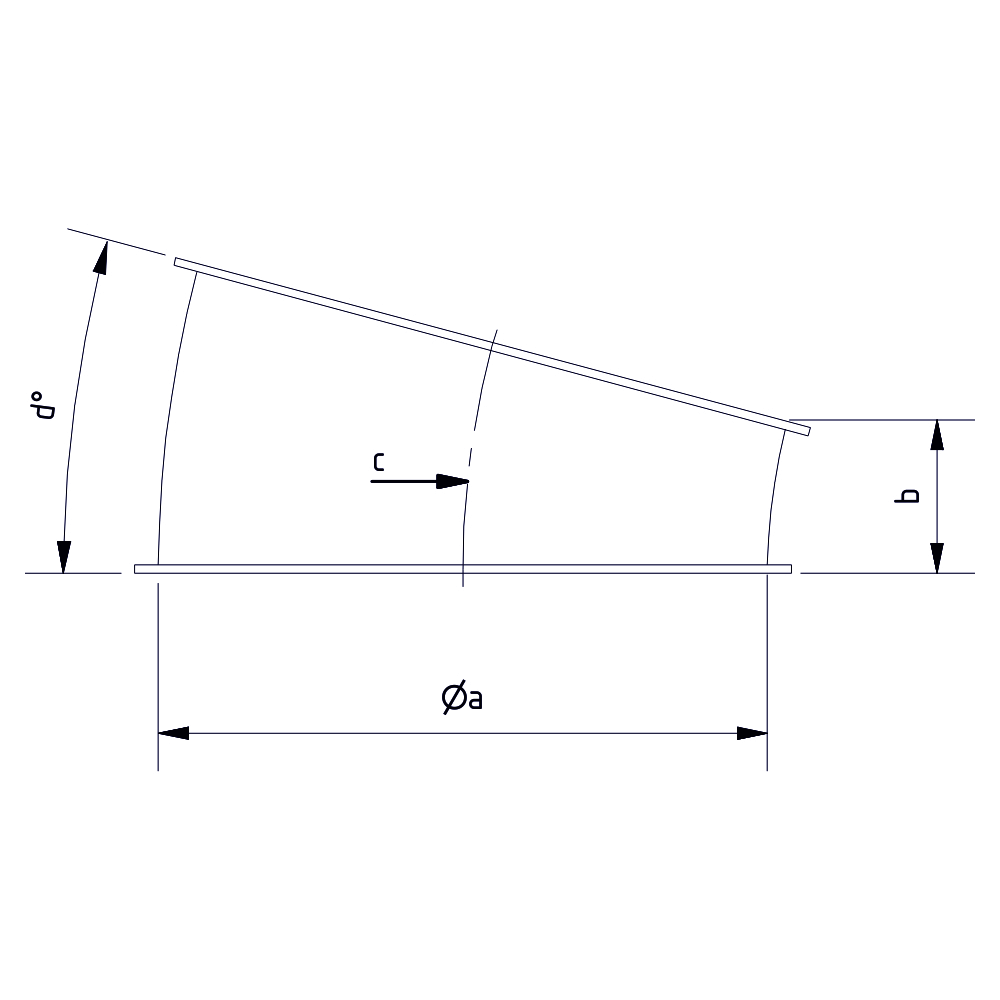

TypeArticlenumberOld Articlenumberabcdkg
DN 150 2mm vz. 1001125 4010015015726 149 mm 45 mm 250 mm 15° 0,6
DN 200 2mm vz. 1001129 4010015015731 199 mm 40 mm 270 mm 15° 0,8
DN 250 2mm vz. 1001133 4010015015736 249 mm 40 mm 310 mm 15° 1,1
DN 300 2mm vz. 1001137 4010015015743 299 mm 40 mm 310 mm 15° 1,3
DN 200 3mm vz. 1001115 4010015015715 199 mm 40 mm 270 mm 15° 1,2
DN 250 3mm vz. 1001111 4010015015710 249 mm 40 mm 310 mm 15° 1,6
DN 300 3mm vz. 1001121 4010015015721 299 mm 40 mm 310 mm 15° 2,0

You can find instruction manuals under the following link: Instruction manuals
