Convex segments 45° 1,5 D

Price on request or after logging in

plus shipping charges

  • radius 1,5 x d
  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • pulled inside the tool
  • hot-dip galvanized (vz.) or powder-coated (pb.)
  • one-part or two-part (*)

SKU: N/A Category:

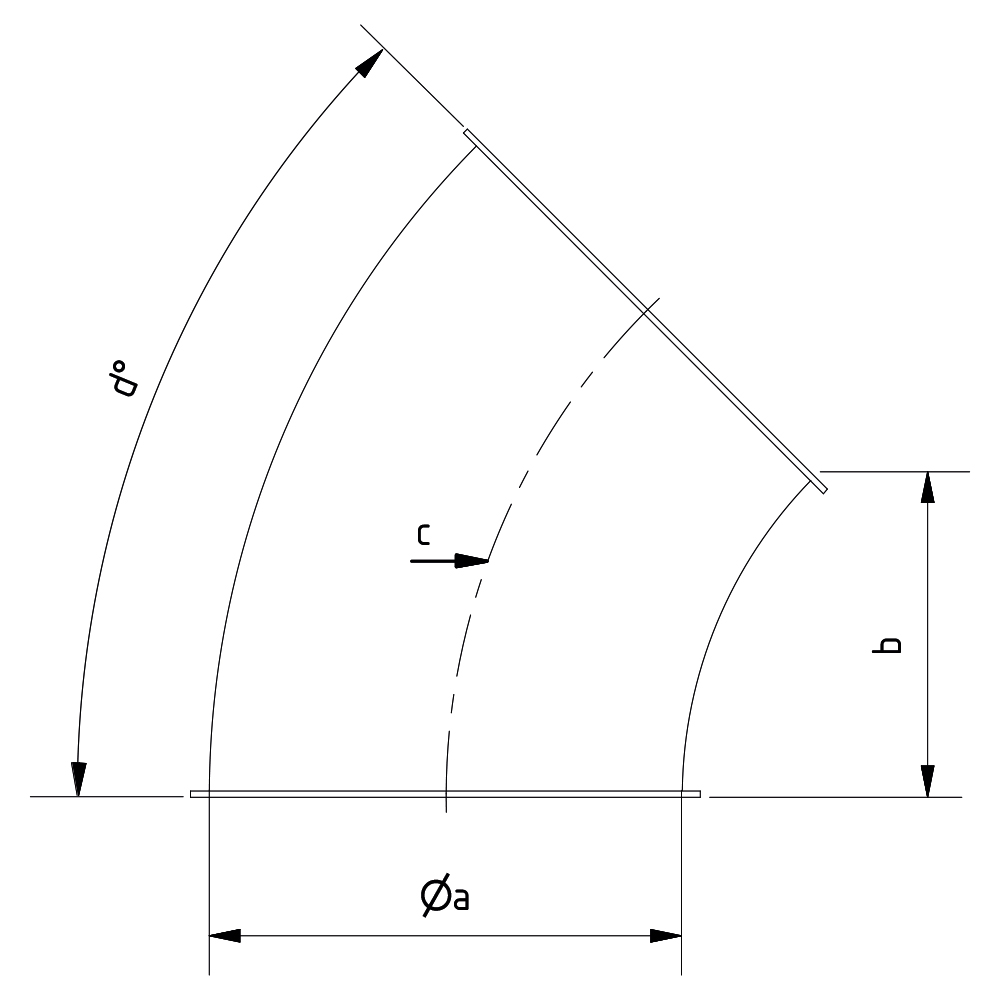

TypeArticlenumberOld Articlenumberabcdkg
DN 150 2mm vz. 1001148 4010015015757 149 mm 100 mm 223,5 mm 45° 1,4
DN 200 2mm vz. 1001205 4010015015826 199 mm 134 mm 298,5 mm 45° 2,3
DN 250 2mm vz. 1000836 (*) 4010015015830 249 mm 170 mm 373,5 mm 45° 3,9
DN 200 3mm vz. 1001152 4010015015762 199 mm 134 mm 298,5 mm 45° 3,5
DN 250 3mm vz. 1001156 4010015015767 249 mm 170 mm 373,5 mm 45° 5,8
DN 300 3mm vz. 1001160 4010015015781 299 mm 209 mm 448,5 mm 45° 8,4
DN 200 3mm pb. 1001180 4010015015801 199 mm 134 mm 298,5 mm 45° 3,5
DN 250 3mm pb. 1001181 4010015015802 249 mm 170 mm 373,5 mm 45° 5,8

You can find instruction manuals under the following link: Instruction manuals

File
4010015015757-Ø150x2, 45°, R=1,5d (30.35 KB)
4010015015762-Ø200x3, 45°, R=1,5d (31.45 KB)
4010015015767-Ø250x3, 45°, R=1,5d (31.56 KB)
