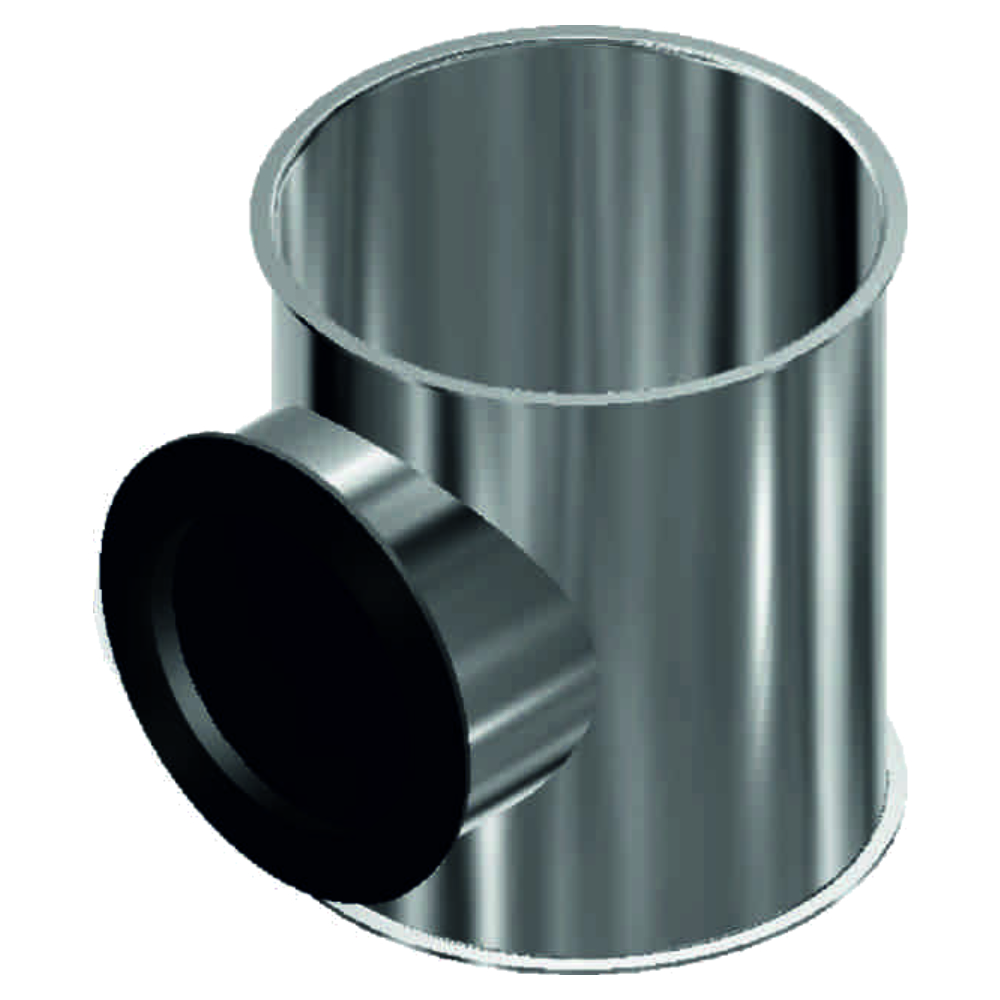

Inspection t-pieces
Price on request or after logging in
plus shipping charges
- superior roundness
- Schmelzer flanged edge
- calibrated inside
- sendzimir galvanized (vz.) or powder-coated (pb.)
- with rubber cover

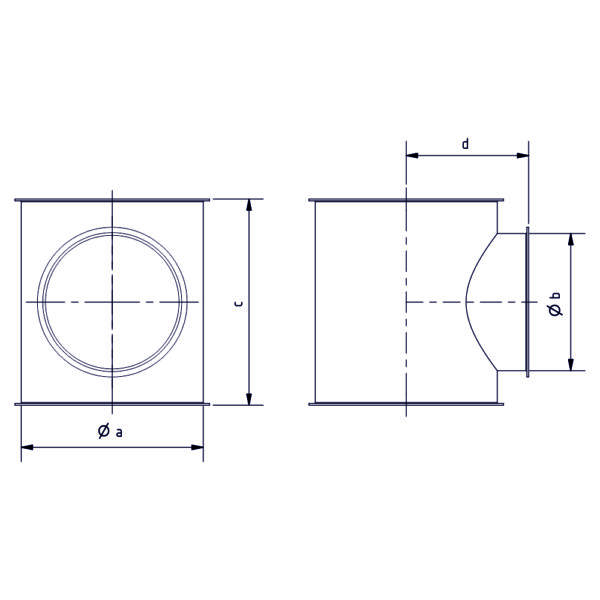

Type | Articlenumber | Old Articlenumber | a | b | c | d | kg |
---|---|---|---|---|---|---|---|
DN 150 2mm vz. | 1000954 | 4010021015676 | 149 mm | 119 mm | 200 mm | 109,5 mm | 1,98 |
DN 175 2mm vz. | 1000963 | 4010021015692 | 169 mm | 149 mm | 230 mm | 124 mm | |
DN 200 2mm vz. | 1000955 | 4010021015677 | 199 mm | 149 mm | 230 mm | 136,5 mm | 2,78 |
DN 250 2mm vz. | 1000956 | 4010021015678 | 249 mm | 149 mm | 230 mm | 161,5 mm | 3,2 |
DN 300 2mm vz. | 1000957 | 4010021015679 | 299 mm | 149 mm | 230 mm | 186,5 mm | 3,88 |
350 2mm vz. | 1000964 | 4010021015693 | |||||
DN 400 2mm vz. | 1000966 | 4010021015695 | |||||
DN 200 3mm vz. | 1000951 | 4010021015673 | 199 mm | 149 mm | 230 mm | 136,5 mm | 4,13 |
DN 250 3mm vz. | 1000952 | 4010021015674 | 249 mm | 149 mm | 230 mm | 161,5 mm | 5,0 |
DN 300 3mm vz. | 1000953 | 4010021015675 | 299 mm | 149 mm | 230 mm | 186,5 mm | 5,73 |
DN 350 3mm vz. | 1000965 | 4010021015694 | |||||
DN 400 3mm vz. | 1000967 | 4010021015696 |
You can find instruction manuals under the following link: Instruction manuals
