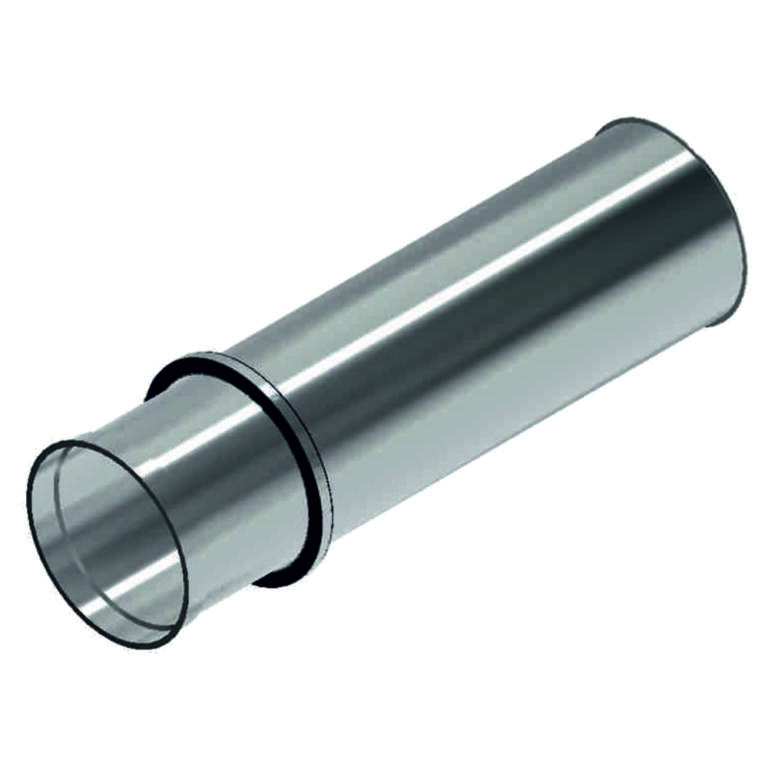

Sliding tube ASW nominal length 1000
Sliding tube ASW nominal length 1000 - Image 2

Sliding tube ASW nominal length 1000

Price on request or after logging in

plus shipping charges; plus VAT

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • sendzimir galvanized (vz.) or powder-coated (pb.)
  • corrosion-resistant foil seam
  • with rubber seal

SKU: N/A Category:

TypeArticlenumberOld Articlenumberabcdkg
DN 150 1mm vz. 1001304 4010014015676 149 mm 1050 mm 994 mm 988 mm 5,4
DN 200 1mm vz. 1001353 4010014015840 199 mm 1050 mm 994 mm 988 mm 7,0
DN 150 2mm vz. 1001394 4010014015912 149 mm
DN 175 2mm vz. 1001395 4010014015913 174 mm
DN 200 2mm vz. 1001396 4010014015914 199 mm 1050 mm 994 mm 988 mm
DN 250 2mm vz. 1001397 4010014015915 249 mm 1050 mm 994 mm 988 mm 17,3
DN 300 2mm vz. 1001398 4010014015916 299 mm 1050 mm 994 mm 988 mm 24,2
350 2mm vz. 1001399 4010014015917 349 mm 24,2
DN 400 2mm vz. 1001400 4010014015918 399 mm

You can find instruction manuals under the following link: Instruction manuals
