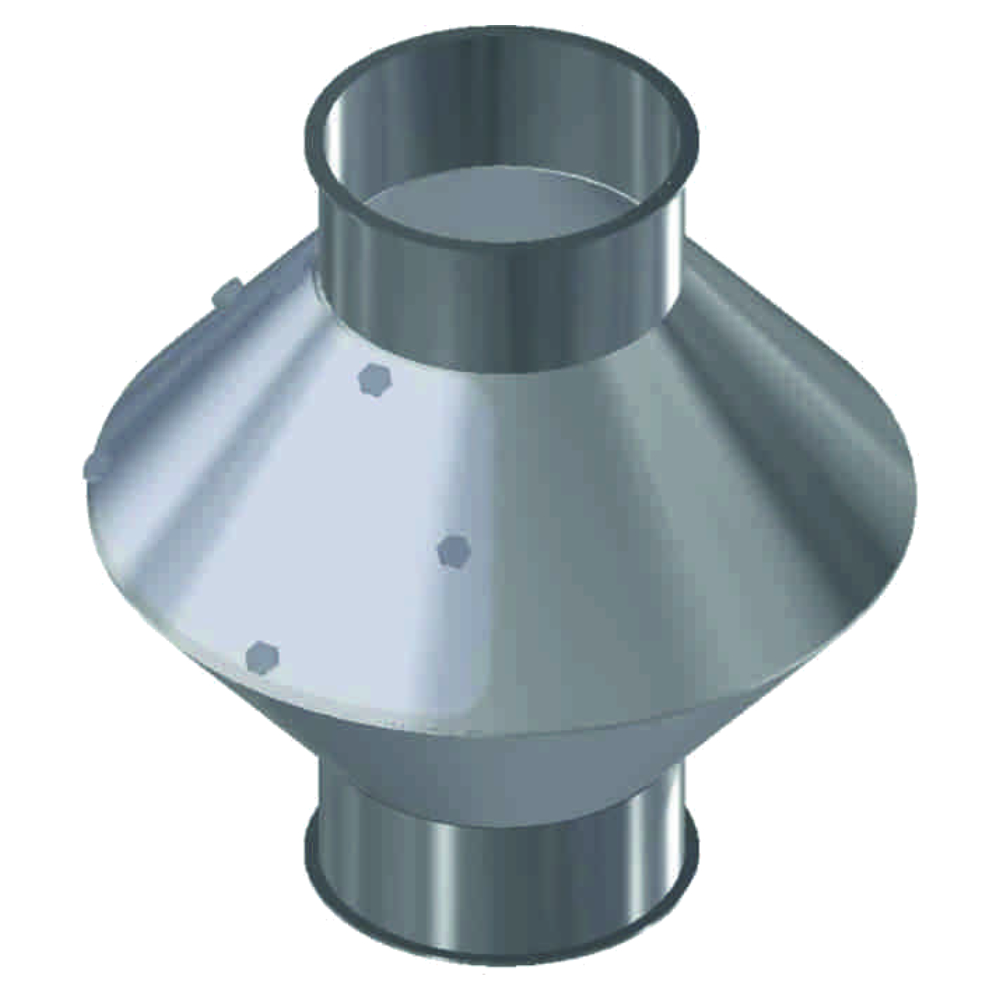

Linear brake

Price on request or after logging in

plus shipping charges

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • hot-dip galvanized (vz.) or powder-coated (pb.)
  • with inspection cover

SKU: N/A Category:

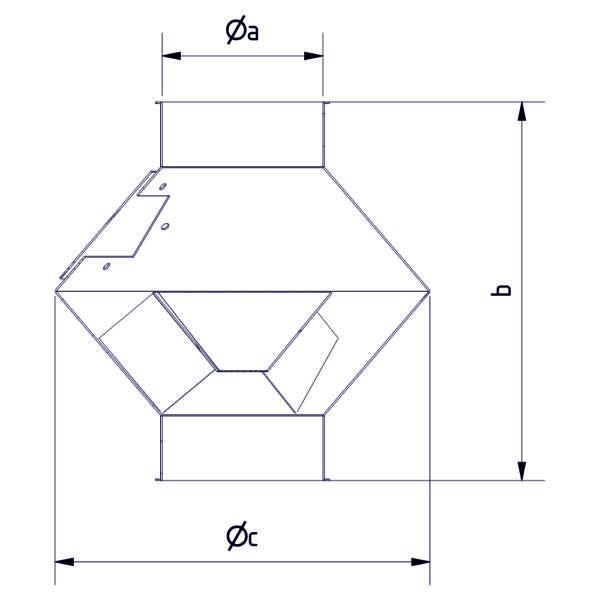

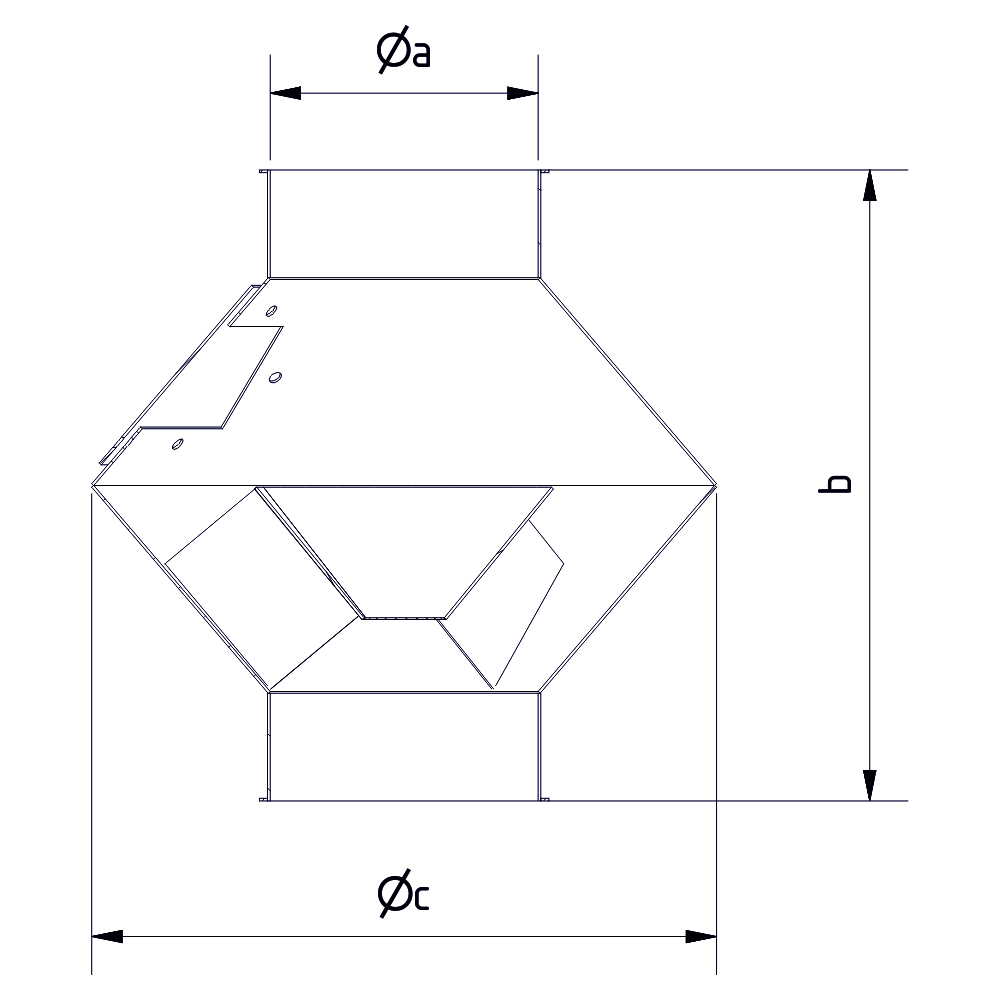

TypeArticlenumberOld Articlenumberabckg
DN 150 2mm vz. 1000934 4010020015691 149 mm 440 mm 392 mm 6,0
DN 175 2mm vz. 1000935 4010020015692 174 mm 507 mm 455 mm 7,8
DN 200 2mm vz. 1000936 4010020015693 199 mm 572 mm 520 mm 9,5
DN 250 2mm vz. 1000937 4010020015694 249 mm 724 mm 650 mm 14,5
DN 200 3mm vz. 1000941 4010020015698 199 mm 572 mm 520 mm
DN 250 3mm vz. 1000942 4010020015699 249 mm 724 mm 650 mm
DN 300 3mm vz. 1000938 4010020015695 299 mm 874 mm 775 mm 24,2
DN 350 3mm vz. 1000939 4010020015696 349 mm 906 mm 795 mm 33,9
DN 400 3mm vz. 1000940 4010020015697 399 mm 1020 mm 898 mm 41,1
DN 200 3mm pb. 1000943 4010020015705 199 mm 572 mm 520 mm
DN 250 3mm pb. 1000944 4010020015706 249 mm 724 mm 650 mm
DN 300 3mm pb. 1000945 4010020015707 299 mm 874 mm 775 mm 24,2
DN 350 3mm pb. 1000946 4010020015708 349 mm 906 mm 795 mm 33,9
DN 400 3mm pb. 1000947 4010020015709 399 mm 1020 mm 898 mm 41,1

You can find instruction manuals under the following link: Instruction manuals
