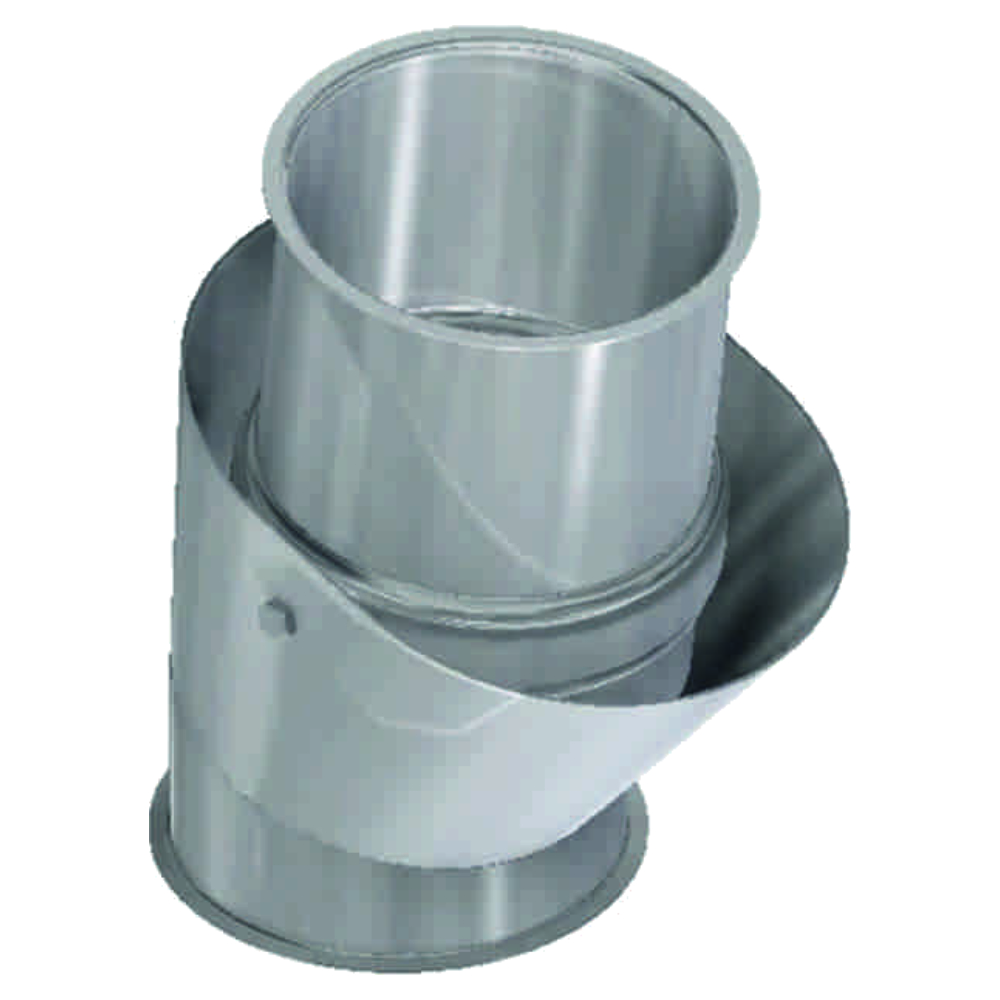

Swivel head
Price on request or after logging in
plus shipping charges; plus VAT
- superior roundness
- Schmelzer flanged edge
- calibrated inside
- hot-dip galvanized (vz.) or powder-coated (pb.)
- creates flexibility in the piping system
- angles are selectable between e° and f°

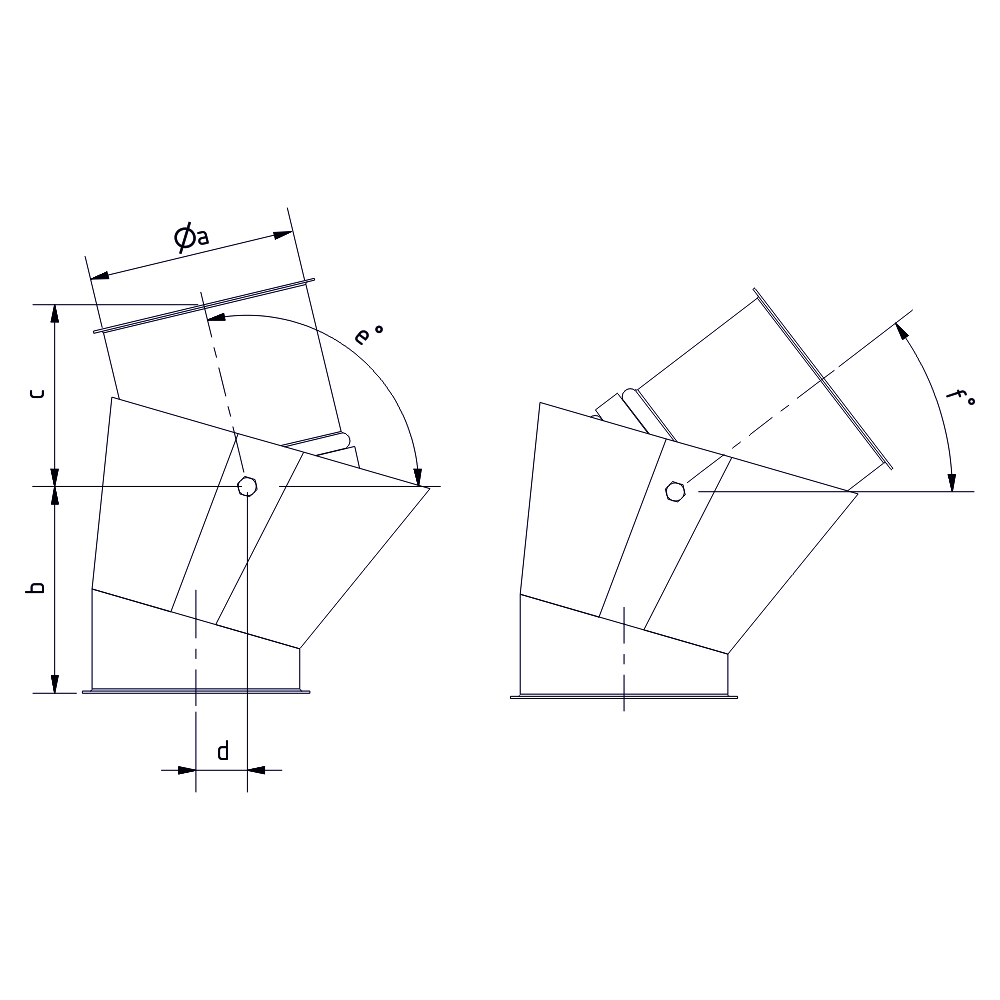

| Type | Articlenumber | Old Articlenumber | a | b | c | d | e | f | kg |
|---|---|---|---|---|---|---|---|---|---|
| DN 150 1,5mm vz. | 1000815 | 4010025015670 | 149 mm | 149 mm | 134 mm | 37 mm | 106° | 61° | 2,5 |
| DN 150 2mm vz. | 1000819 | 4010025015674 | 149 mm | 149 mm | 134 mm | 37 mm | 106° | 61° | 2,7 |
| DN 200 2mm vz. | 1000823 | 4010025015678 | 199 mm | 246 mm | 134 mm | 37 mm | 106° | 61° | 3,6 |
| DN 250 2mm vz. | 1000824 | 4010025015688 | 249 mm | 266 mm | 134 mm | 37 mm | 106° | 61° | 10,10 |
You can find instruction manuals under the following link: Instruction manuals
