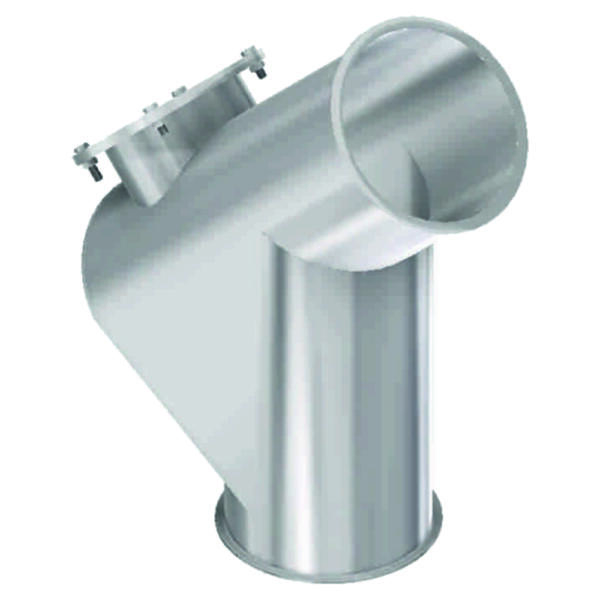

Brake 45°

Price on request or after logging in

plus shipping charges

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • hot-dip galvanized (vz.) or powder-coated (pb.)
  • with inspection cover
  • HARDOX bottom

SKU: N/A Category:

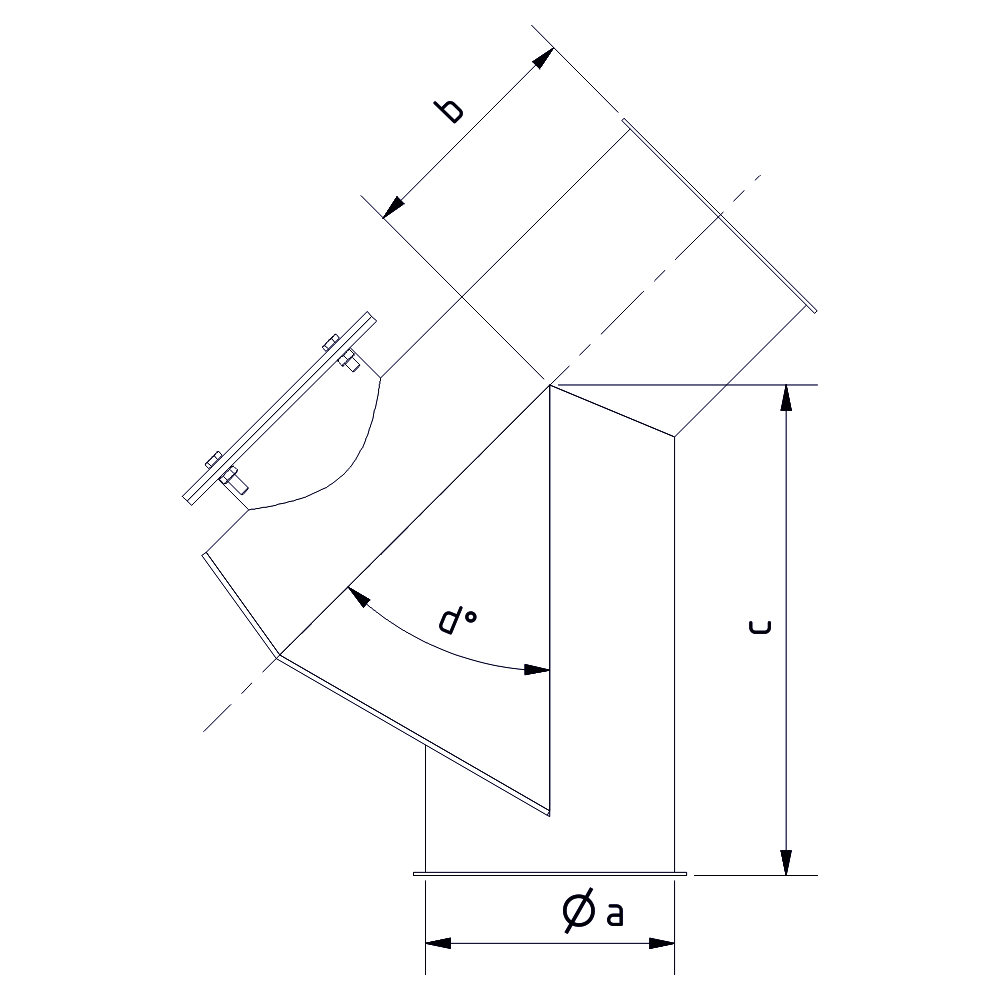

TypeArticlenumberOld Articlenumberabcdkg
DN 150 2mm vz. 1000922 4010020015664 149 mm 146 mm 296 mm 45° 5,4
DN 175 2mm vz. 1003941 4010020015688 174 mm 151 mm 346 mm 45° 6,7
DN 200 2mm vz. 1000923 4010020015665 199 mm 196 mm 396 mm 45° 8,7
DN 250 2mm vz. 1000924 4010020015666 249 mm 246 mm 496 mm 45° 13,2
DN 200 3mm vz. 1000925 4010020015671 199 mm 196 mm 396 mm 45° 12,1
DN 250 3mm vz. 1000926 4010020015672 249 mm 246 mm 496 mm 45° 18,5
DN 300 3mm vz. 1000927 4010020015673 299 mm 297 mm 597 mm 45° 26,4
DN 350 3mm vz. 1003916 4010020015689 349 mm 345 mm 695 mm 45° 36,1

You can find instruction manuals under the following link: Instruction manuals

File
4010020015664_Getreidebremse Ø150x2 (213.02 KB)
4010020015671_Getreidebremse Ø200x3 (229.8 KB)
4010020015672_Getreidebremse Ø250x3 (210.26 KB)
4010020015673_Getreidebremse Ø300x3 (210.44 KB)
