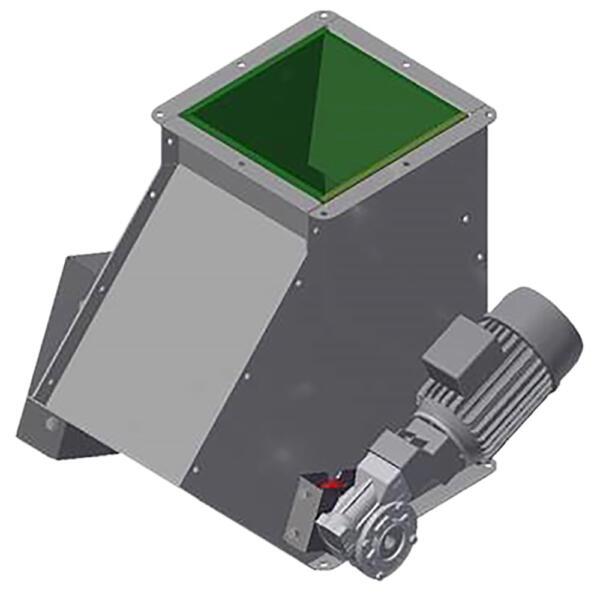

Modular one way valve 1×45° electrical
Price on request or after logging in
plus shipping charges
- sendzimir galvanized
- with manual lever
- longer service life
- light assembly weight
- exchangeable lining
- bearing bush
- electric actuator
Type | Articlenumber | a | b | c | d | e | t |
---|---|---|---|---|---|---|---|
DN 200 2mm APS | 4018010016144 | 200 mm | 320 mm | 320 mm | 80 mm | 45° | 8 mm |
DN 250 2mm APS | 4018010016145 | 250 mm | 380 mm | 380 mm | 120 mm | 45° | 10 mm |
DN 300 2mm APS | 4018010016146 | 300 mm | 440 mm | 440 mm | 160 mm | 45° | 10 mm |
DN 350 2mm APS | 4018010016147 | 45° | 10 mm | ||||
DN 400 2mm APS | 4018010016148 | 45° | 10 mm | ||||
DN 200 2mm Super APS | 4018010016174 | 200 mm | 320 mm | 320 mm | 80 mm | 45° | 6 mm |
DN 250 2mm Super APS | 4018010016175 | 250 mm | 380 mm | 380 mm | 120 mm | 45° | 6 mm |
DN 300 2mm Super APS | 4018010016176 | 300 mm | 440 mm | 440 mm | 160 mm | 45° | 6 mm |
DN 350 2mm Super APS | 4018010016177 | 45° | 6 mm | ||||
DN 400 2mm Super APS | 4018010016178 | 45° | 6 mm | ||||
DN 200 2mm Super APS food | 4018010016204 | 200 mm | 320 mm | 320 mm | 80 mm | 45° | 6 mm |
DN 250 2mm Super APS food | 4018010016205 | 250 mm | 380 mm | 380 mm | 120 mm | 45° | 6 mm |
DN 300 2mm Super APS food | 4018010016206 | 300 mm | 440 mm | 440 mm | 160 mm | 45° | 6 mm |
DN 350 2mm Super APS food | 4018010016207 | 45° | 6 mm | ||||
DN 400 2mm Super APS food | 4018010016208 | 45° | 6 mm |
You can find instruction manuals under the following link: Instruction manuals
