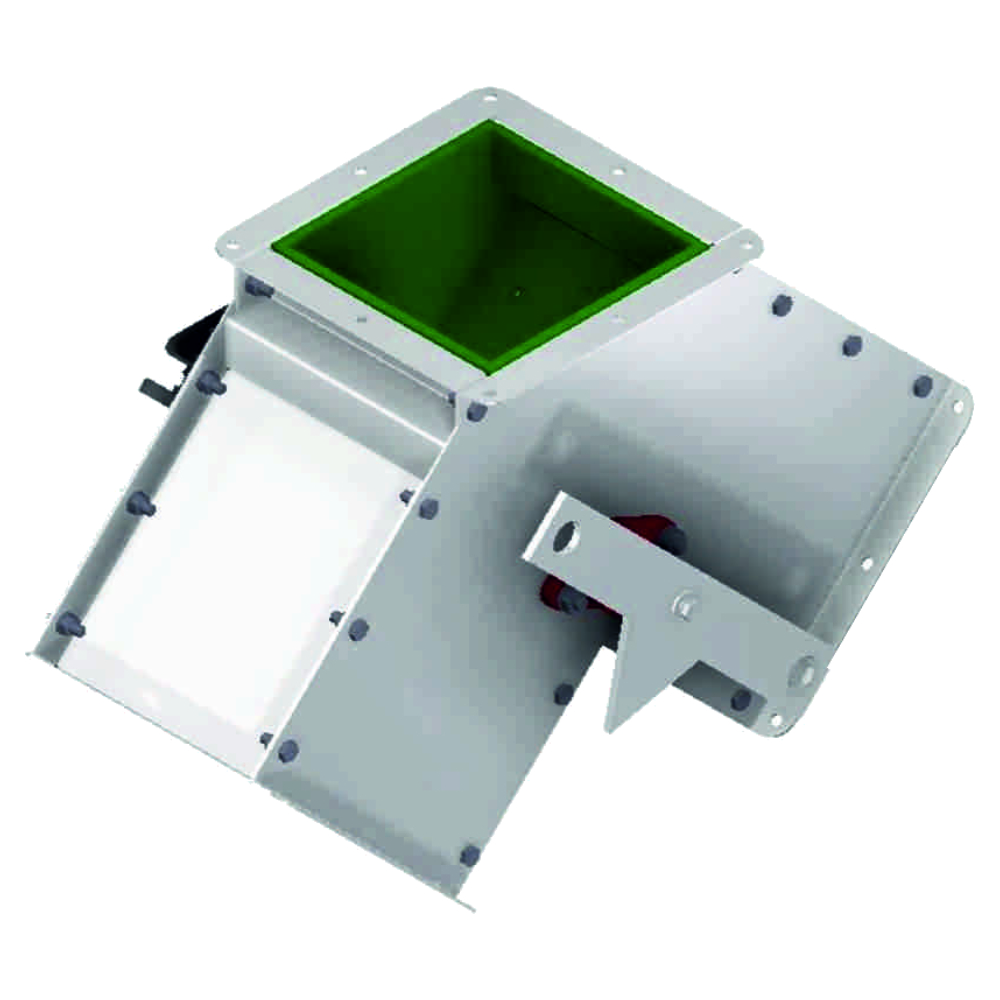

Modular two way valve 2×45° with hand lever (APS; Super APS; Super APS food)
Price on request or after logging in
plus shipping charges
- sendzimir galvanized
- with manual lever
- longer service life
- light assembly weight
- exchangeable lining

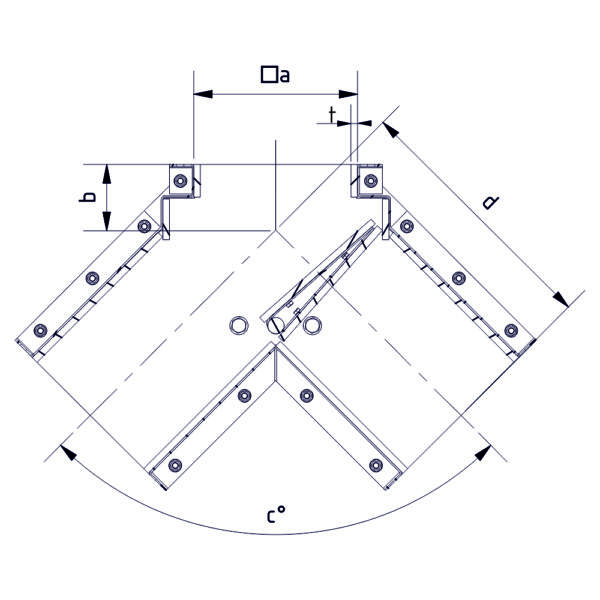

Type | Articlenumber | Old Articlenumber | a | b | c | d | t | kg |
---|---|---|---|---|---|---|---|---|
DN 200 2mm APS | 1000338 | 4018010016139 | 200 mm | 80 mm | 90° | 320 mm | 8 mm | 20,4 |
DN 250 2mm APS | 1000339 | 4018010016140 | 250 mm | 120 mm | 90° | 380 mm | 10 mm | 27,4 |
DN 300 2mm APS | 1000340 | 4018010016141 | 300 mm | 160 mm | 90° | 440 mm | 10 mm | 36,6 |
DN 350 2mm APS | 1000341 | 4018010016142 | 90° | 10 mm | ||||
DN 400 2mm APS | 1000342 | 4018010016143 | 90° | 10 mm | ||||
DN 200 2mm Super APS | 1000114 | 4018010016169 | 200 mm | 80 mm | 90° | 320 mm | 6 mm | |
DN 250 2mm Super APS | 1000115 | 4018010016170 | 250 mm | 120 mm | 90° | 380 mm | 6 mm | |
DN 300 2mm Super APS | 1000116 | 4018010016171 | 300 mm | 160 mm | 90° | 440 mm | 6 mm | |
DN 350 2mm Super APS | 1000117 | 4018010016172 | 90° | 6 mm | ||||
DN 400 2mm Super APS | 1000118 | 4018010016173 | 90° | 6 mm | ||||
DN 200 2mm Super APS food | 1000144 | 4018010016199 | 200 mm | 80 mm | 90° | 320 mm | 6 mm | |
DN 250 2mm Super APS food | 1000145 | 4018010016200 | 250 mm | 120 mm | 90° | 380 mm | 6 mm | |
DN 300 2mm Super APS food | 1000146 | 4018010016201 | 300 mm | 160 mm | 90° | 440 mm | 6 mm | |
DN 350 2mm Super APS food | 1000147 | 4018010016202 | 90° | 6 mm | ||||
DN 400 2mm Super APS food | 1000148 | 4018010016203 | 90° | 6 mm |
You can find instruction manuals under the following link: Instruction manuals
