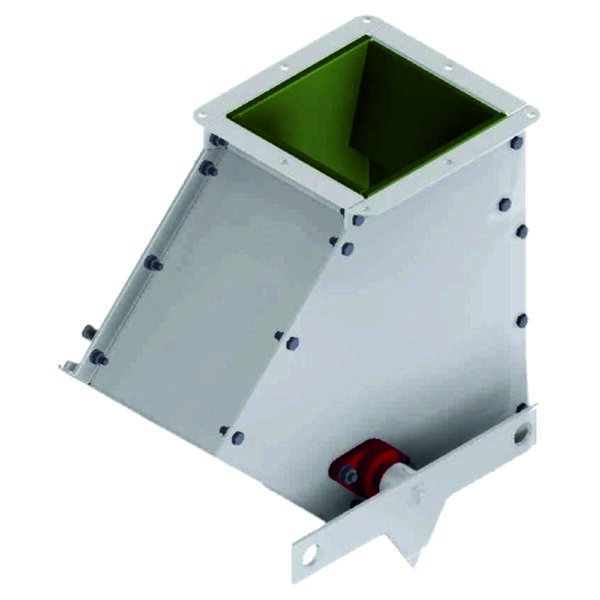

Modular one way valve 1×45° with hand lever (APS; Super APS; Super APS food)
Price on request or after logging in
plus shipping charges
- sendzimir galvanized
- with manual lever
- longer service life
- light assembly weight
- exchangeable lining

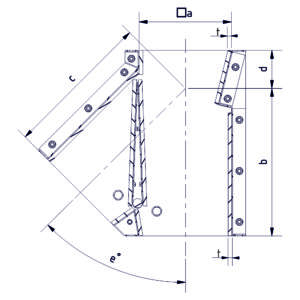

Type | Articlenumber | Old Articlenumber | a | b | c | d | e | t | kg |
---|---|---|---|---|---|---|---|---|---|
DN 200 2mm APS | 1000333 | 4018010016134 | 200 mm | 320 mm | 320 mm | 80 mm | 45° | 8 mm | 17,5 |
DN 250 2mm APS | 1000334 | 4018010016135 | 250 mm | 380 mm | 380 mm | 120 mm | 45° | 10 mm | 25,2 |
DN 300 2mm APS | 1000335 | 4018010016136 | 300 mm | 440 mm | 440 mm | 160 mm | 45° | 10 mm | 32,4 |
DN 350 2mm APS | 1000336 | 4018010016137 | 45° | 10 mm | |||||
DN 400 2mm APS | 1000337 | 4018010016138 | 45° | 10 mm | |||||
DN 200 2mm Super APS | 1000109 | 4018010016164 | 200 mm | 320 mm | 320 mm | 80 mm | 45° | 6 mm | |
DN 250 2mm Super APS | 1000110 | 4018010016165 | 250 mm | 380 mm | 380 mm | 120 mm | 45° | 6 mm | |
DN 300 2mm Super APS | 1000111 | 4018010016166 | 300 mm | 440 mm | 440 mm | 160 mm | 45° | 6 mm | |
DN 350 2mm Super APS | 1000112 | 4018010016167 | 45° | 6 mm | |||||
DN 400 2mm Super APS | 1000113 | 4018010016168 | 45° | 6 mm | |||||
DN 200 2mm Super APS food | 1000139 | 4018010016194 | 200 mm | 320 mm | 320 mm | 80 mm | 45° | 6 mm | |
DN 250 2mm Super APS food | 1000140 | 4018010016195 | 250 mm | 380 mm | 380 mm | 120 mm | 45° | 6 mm | |
DN 300 2mm Super APS food | 1000141 | 4018010016196 | 300 mm | 440 mm | 440 mm | 160 mm | 45° | 6 mm | |
DN 350 2mm Super APS food | 1000142 | 4018010016197 | 45° | 6 mm | |||||
DN 400 2mm Super APS food | 1000143 | 4018010016198 | 45° | 6 mm |
You can find instruction manuals under the following link: Instruction manuals
