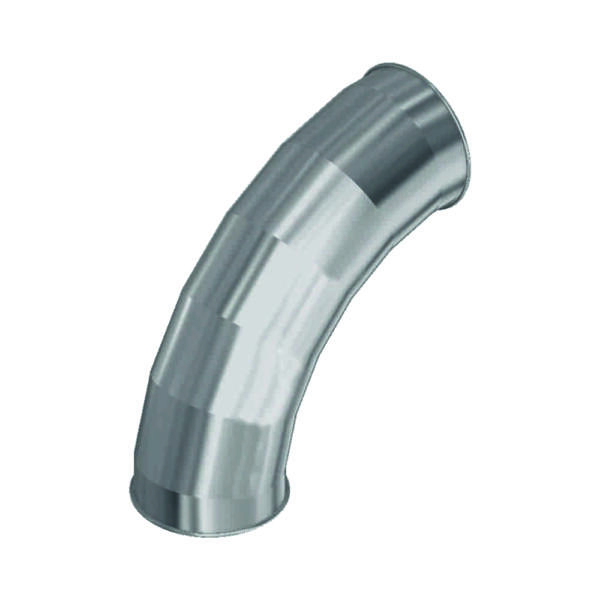

Pipe elbow with beaded flange r=600

Price on request or after logging in

plus shipping charges

  • superior roundness
  • beaded flange connection
  • sendzimir galvanized
  • horizontal folded

SKU: N/A Category:

TypeArticlenumberOld Articlenumberabcdt
DN 250 45°_0,88 1003675 4002015015773 250 mm 600 mm 45° 8 mm 0,88 mm
DN 310 45°_0,88 1003684 4002015015790 310 mm 600 mm 45° 10 mm 0,88 mm
DN 380 45°_0,88 1003694 4002015015814 380 mm 600 mm 45° 10 mm 0,88 mm
DN 250 45°_1,5 1003674 4002015015772 250 mm 600 mm 45° 8 mm 1,5 mm
DN 310 45°_1,5 1003683 4002015015789 310 mm 600 mm 45° 10 mm 1,5 mm
DN 380 45°_1,5 1003693 4002015015813 380 mm 600 mm 45° 10 mm 1,5 mm
DN 450 45°_0,88 1003711 4002015015848 450 mm 600 mm 45° 10 mm 0,80 mm
DN 500 45°_0,88 1003702 4002015015831 500 mm 600 mm 45° 10 mm 0,88 mm
DN 250 90°_0,88 1003679 4002015015784 250 mm 600 mm 90° 8 mm 0,88 mm
DN 310 90°_0,88 1003689 4002015015809 310 mm 600 mm 90° 10 mm 0,88 mm
DN 380 90°_0,88 1003698 4002015015826 380 mm 600 mm 90° 10 mm 0,88 mm
DN 250 90°_1,5 1003678 4002015015783 250 mm 600 mm 90° 8 mm 1,5 mm
DN 310 90°_1,5 1003688 4002015015808 310 mm 600 mm 90° 10 mm 1,5 mm
DN 380 90°_1,5 1003697 4002015015825 380 mm 600 mm 90° 10 mm 1,5 mm
DN 450 90°_0,88 1003700 4002015015828 450 mm 600 mm 90° 10 mm 1,0 mm
DN 500 90°_0,88 1003704 4002015015833 500 mm 600 mm 90° 10 mm 0,88 mm

You can find instruction manuals under the following link: Instruction manuals
