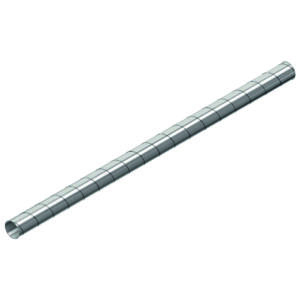

Pipe system Helix nominal length 500

Price on request or after logging in

plus shipping charges

  • flanged edge (B) or welded flange RII DIN 24154 (F)
  • hot-dip galvanized
  • superior roundness
  •  no deformation due to longitudinal and cross seams
  • mild steel (DD11) or wear-resistant steel (S355MC)

SKU: N/A Category:

TypeArticlenumberOld Articlenumberabtkg
DN 160 2mm DD11 (F) 1003158 4006014016184 156 mm 488 mm 2 mm 4,0
DN 160 2mm S355MC (F) 1003165 4006014016191 156 mm 488 mm 2 mm 4,0
DN 160 2mm DD11 (B) 1003300 4006014015946 156 mm 488 mm 2 mm 4,0
DN 160 2mm S355MC (B) 1003307 4006014015953 156 mm 488 mm 2 mm 4,0
DN 175 2mm DD11 (F) 1003159 4006014016185 174 mm 488 mm 2 mm 4,4
DN 175 2mm S355MC (F) 1003166 4006014016192 174 mm 488 mm 2 mm 4,4
DN 175 2mm DD11 (B) 1003301 4006014015947 174 mm 488 mm 2 mm 4,4
DN 175 2mm S355MC (B) 1003308 4006014015954 174 mm 488 mm 2 mm 4,4
DN 200 2mm DD11 (F) 1003160 4006014016186 196 mm 488 mm 2 mm 5,0
DN 200 2mm S355MC (F) 1003167 4006014016193 196 mm 488 mm 2 mm 5,0
DN 200 2mm DD11 (B) 1003302 4006014015948 196 mm 488 mm 2 mm 5,0
DN 200 2mm S355MC (B) 1003309 4006014015955 196 mm 488 mm 2 mm 5,0
DN 250 2mm DD11 (F) 1003161 4006014016187 246 mm 488 mm 2 mm 6,3
DN 250 2mm S355MC (F) 1003168 4006014016194 246 mm 488 mm 2 mm 6,3
DN 250 2mm DD11 (B) 1003303 4006014015949 246 mm 488 mm 2 mm 6,3
DN 250 2mm S355MC (B) 1003310 4006014015956 246 mm 488 mm 2 mm 6,3
DN 300 2mm DD11 (F) 1003162 4006014016188 301 mm 488 mm 2 mm 7,5
DN 300 2mm S355MC (F) 1003169 4006014016195 301 mm 488 mm 2 mm 7,5
DN 300 2mm DD11 (B) 1003304 4006014015950 301 mm 488 mm 2 mm 7,5
DN 300 2mm S355MC (B) 1003311 4006014015957 301 mm 488 mm 2 mm 7,5
DN 350 2mm DD11 (F) 1003163 4006014016189 351 mm 488 mm 2 mm 8,8
DN 350 2mm S355MC (F) 1003170 4006014016196 351 mm 488 mm 2 mm 8,8
DN 350 2mm DD11 (B) 1003305 4006014015951 351 mm 488 mm 2 mm 8,8
DN 350 2mm S355MC (B) 1003312 4006014015958 351 mm 488 mm 2 mm 8,8
DN 400 2mm DD11 (F) 1003164 4006014016190 396 mm 488 mm 2 mm 10,1
DN 400 2mm S355MC (F) 1003171 4006014016197 396 mm 488 mm 2 mm 10,1
DN 400 2mm DD11 (B) 1003306 4006014015952 396 mm 488 mm 2 mm 10,1
DN 400 2mm S355MC (B) 1003313 4006014015959 396 mm 488 mm 2 mm 10,1

You can find instruction manuals under the following link: Instruction manuals
