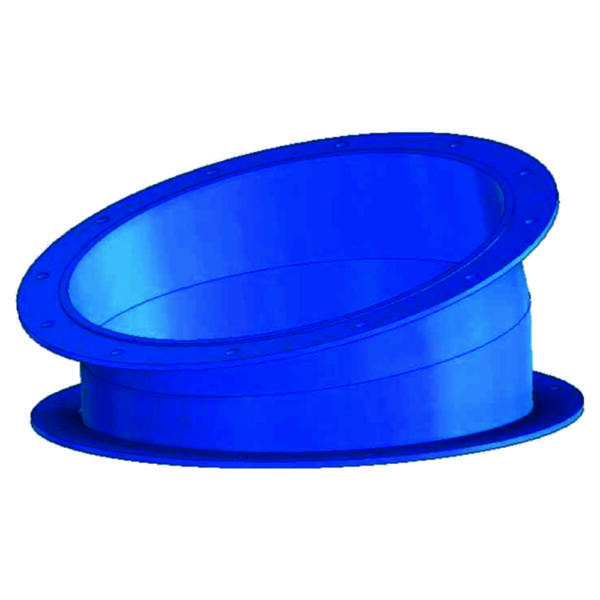

Segmental elbow type Helix-air with flange 15°

Price on request or after logging in

plus shipping charges

  • priming coated
  • greater wall thicknesses available
  • flanges RII DIN 24154
  • with loose flange connection

SKU: N/A Category:

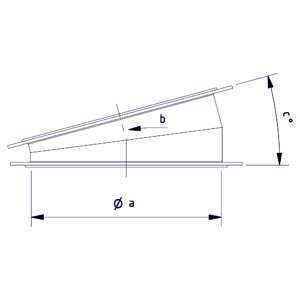

TypeArticlenumberOld Articlenumberabctkg
DN 160 1002926 4006015015668 156 mm 234 mm 15° 2 mm 1,6
DN 180 1002927 4006015015669 176 mm 264 mm 15° 2 mm 2,2
DN 200 1002928 4006015015670 196 mm 294 mm 15° 2 mm 2,2
DN 250 1002929 4006015015671 246 mm 369 mm 15° 2 mm 2,9
DN 280 1002930 4006015015672 276 mm 414 mm 15° 2 mm 4,3
DN 315 1002931 4006015015673 311 mm 466 mm 15° 2 mm 5,0
DN 355 1002932 4006015015674 351 mm 526 mm 15° 2 mm 5,9
DN 400 1002933 4006015015675 396 mm 594 mm 15° 2 mm 6,9
DN 450 1002934 4006015015676 446 mm 669 mm 15° 2 mm 8,1
DN 500 1002935 4006015015677 496 mm 744 mm 15° 2 mm 9,6
DN 560 1002936 4006015015678 556 mm 834 mm 15° 2 mm 12,3
DN 630 1002937 4006015015679 626 mm 939 mm 15° 2 mm 14,6
DN 710 1002938 4006015015680 706 mm 1059 mm 15° 2 mm 17,5
DN 800 1002939 4006015015681 796 mm 1194 mm 15° 2 mm 21,0
DN 900 1002940 4006015015682 896 mm 1344 mm 15° 2 mm 25,3
DN 1000 1002941 4006015015683 996 mm 1494 mm 15° 2 mm 30,1
DN 1120 1002942 4006015015684 1116 mm 1674 mm 15° 3 mm 42,8
DN 1250 1002943 4006015015685 1246 mm 1869 mm 15° 3 mm 50,9
DN 1400 1002944 4006015015686 1396 mm 2094 mm 15° 3 mm 61,0
DN 1600 1002945 4006015015687 1596 mm 2394 mm 15° 3 mm 75,5
DN 1800 1002946 4006015015688 1796 mm 2694 mm 15° 3 mm 87,7
DN 2000 1002947 4006015015689 1996 mm 2994 mm 15° 3 mm 109,9
