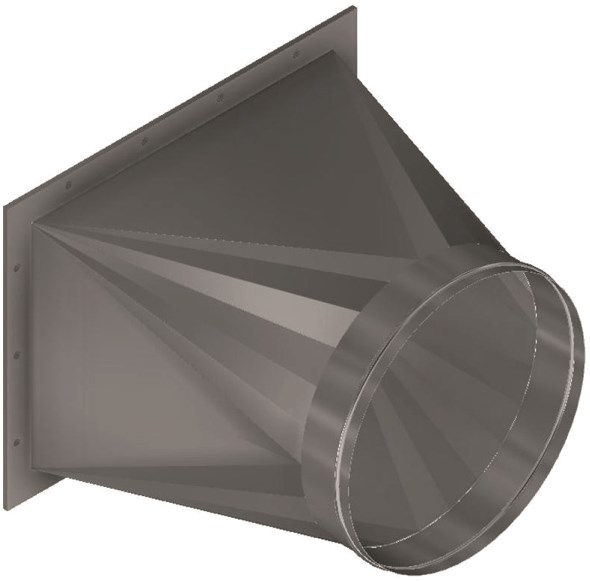

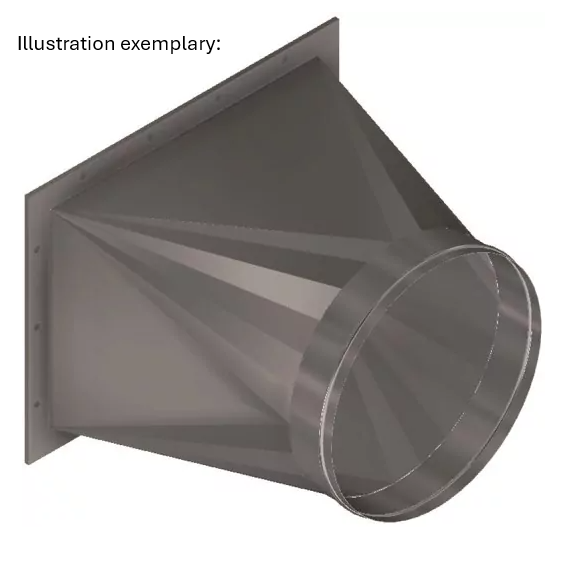

Transition for LC fan
Transition for LC fan - Image 2

Transition for LC fan

Price on request or after logging in

plus shipping charges; plus VAT

  • thickness 1mm
  • hot-dip galvanized (vz.) flange frame
  • alternative transitions are available for an extra charge

SKU: N/A Category:

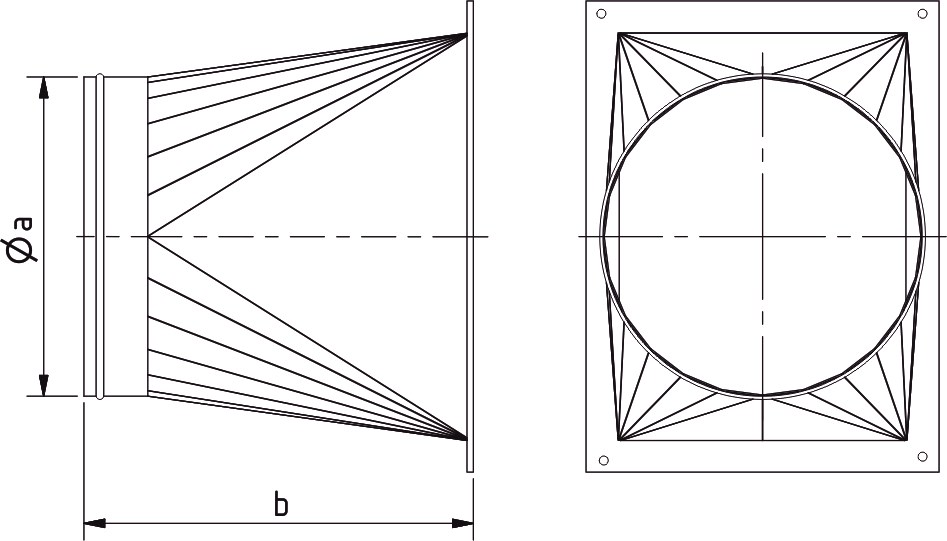

TypeArticlenumberOld Articlenumberabkg
1,1 kW Ø150 4000570 4009023015671 150 mm 300 mm 2,0
2,2 kW Ø300 4000571 4009023015672 300 mm 350 mm 3,2
3,0/4,0 kW Ø300 4000572 4009023015673 300 mm 350 mm 3,3
5,5/7,5 kW Ø300 4000573 4009023015674 300 mm 350 mm 3,1
5,5/7,5 kW Ø300 4000574 4009023015675 490 mm 500 mm 6,7
11,0/15,0 kW Ø400 4000833 400 mm 385 mm 7,0
11,0/15,0 kW Ø500 4000576 4009023015721 500 mm 385 mm 10,0

You can find instruction manuals under the following link: Instruction manuals
